300/500V Mica+SR Insulated, LSZH Sheathed, Screened Power Cables to BS 7629-1 (2-4 Cores & Multcore)

FFX200E 05mSOZ1-U/R PH120 (CU/MGT+SR/OSCR/LSZH 300/500V Class 1/2)

APPLICATION

300/500V Mica+SR Insulated, LSZH Sheathed, Screened Power Cables to BS 7629-1 (2-4 Cores &

Multcore) are primarily intended for use in the following applications:

BS 5266-1 for emergency lighting of premises.

BS 5839-1 for fire detection and fire alarm systems in and around building.

BS 5839-8 for voice alarm systems.

BS 5839-9 for emergency voice communication systems.

STANDARDS

Basic design to BS 7629-1:2015

FFX200E 05mSOZ1-U/R PH120 (CU/MGT+SR/OSCR/LSZH 300/500V Class 1/2)

FIRE PERFORMANCE

Circuit Integrity

BS 6387; BS EN50200; BS 8434-2

Flame Retardance (Single vertical wire or cable test)

IEC 60332-1-2; EN 60332-1-2

Reduced Fire Propagation (Vertically-mounted bundled wires & cables test)

IEC 60332-3-24; EN 60332-3-24

Halogen Free

IEC 60754-1; EN 50267-2-1

No Corrosive Gas emission

IEC 60754-2; EN 50267-2-2

Minimum Smoke emission

IEC 61034-2; EN 61034-2

VOLTAGE RATING

300/500V

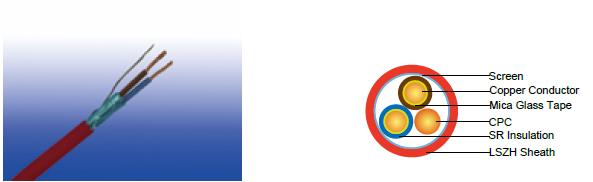

CABLE CONSTRUCTION

Conductor : Copper conductor according to BS EN 60228 class 1/2.

Fire Barrier : Mica glass tape.

Insulation : Fire resistant special ceramized silicone rubber compound type EI 2 as per BS EN 50363-1.

Screened : One or more metallic or laminated metallic tape(s) shall be applied, either longitudinally or helically or

a combination of both, with the metallic element in contact with the uninsulated circuit protective conductor or

drain wire.

Circuit Protective Conductor : Uninsulated tinned copper conductor of the same section and class as the

insulated conductors in the two,three and four cores cables.

Sheath : Extruded LSZH type LTS 3 according to BS 7655-6.1.

Insulation Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite

properties can be offered as option.

COLOUR CODE

Insulation Colour :

Number of cores

Core colours or numbering

2 cores+uninsulated circuit protective conductor

Brown, Blue or Brown, Brown

3 cores+uninsulated circuit protective conductor

Brown, Black, Grey

4 cores+uninsulated circuit protective conductor

Brown, Blue, Black, Grey

7, 12 and19 cores+uninsulated drain wire

Numbers 1, 2, 3, 4, 5, 6, 7 and upwards or, for identification by colour, an identical colour(excluding brown and black),except for two adjacent cores in each layer distinctively coloured brown and black.

Sheath Colour : Colours upon request.

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation : 70°C

Maximum short circuit temperature (5 Seconds) : 250°C

Minimum bending radius : 6 x Overall Diameter

CONSTRUCTION PARAMETERS


Conductor

FFX200E 05mSOZ1-U/R PH120

No. of Cores × Cross-sectional Area

Conductor Class

Nominal Insulation Thickness

CPC Nominal Cross-sectional Area

Nominal Sheath Thickness

Approx. Overall Diameter

Approx. Weight

no.×mm²



mm

mm²

mm

mm

kg/km

2 cores

2x1.0

1/2

0.6

1.0

0.9

10.0

103

2x1.5

1/2

0.7

1.5

0.9

10.5

130

2x2.5

1/2

0.8

2.5

1.0

12.5

181

2x4.0

1/2

0.8

4.0

1.1

14.5

246

3 cores

3x1.5

1/2

0.7

1.5

0.9

11.7

166

3x2.5

1/2

0.8

2.5

1.0

13.7

232

3x4.0

1/2

0.8

4.0

1.1

15.7

318

4 cores

4x1.5

1/2

0.7

1.5

1.0

12.9

211

4x2.5

1/2

0.8

2.5

1.1

14.4

294

4x4.0

1/2

0.8

4.0

1.2

17.4

403

7 cores

7x1.5

1/2

0.7

0.5

1.1

15.5

331

7x2.5

1/2

0.8

0.5

1.2

18.0

698

12 cores

12x1.5

1/2

0.7

0.5

1.2

20.2

537

12x2.5

1/2

0.8

0.5

1.4

24.2

1093

19 cores

19x1.5

1/2

0.7

0.5

1.3

24.0

802

Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information

ELECTRICAL PROPERTIES

Conductor operating temperature : 70°C

Ambient temperature : 30°C

Current-Carrying Capacities (Amp) according to BS 7671:2008 table 4D2A


Conductor cross-sectional area

Ref. Method A (enclosed in conduit in thermally insulating wall etc)

Ref. Method B (enclosed in conduit on a wall or in trunking etc)

Ref. Method C (clipped direct)

Ref. Method E (in free air or on a perforated cable tray etc. horizontal or vertical)

1 two-core cable*, single-phase a.c. or d.c.

1 three-core or 1 four-core cable*, three-phase a.c.

1 two-core cable*, singlephase a.c. or d.c.

1 three-core or 1 four-core cable*, three-phase a.c.

1 two-core cable*, single-phase a.c. or d.c.

1 three-core or 1 four-core cable*, three-phase a.c.

1 two-core cable*, single-phase a.c. or d.c.

1 three-core or 1 four-core cable*, three-phase a.c.

1

2

3

4

5

6

7

8

9

mm²

A

A

A

A

A

A

A

A

1.0

11

10

13

11.5

15

13.5

17

14.5

1.5

14

13

16.5

15

19.5

17.5

22

18.5

2.5

18.5

17.5

23

20

27

24

30

25

4

25

23

30

27

36

32

40

34

Note: *With or without a protective conductor.
Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4D2B

Conductor cross-sectional area

Two-core cable d.c.

Two-core cable single-phase a.c.

Three- or four-core cable, three-phase a.c.

1

2

3

4

mm²

mV/A/m

mV/A/m

mV/A/m

1.0

44

44

38

1.5

29

29

25

2.5

18

18

15

4

11

11

9.5
